In this lab, you implement Private Google Access and Cloud NAT for a VM instance that doesn’t have an external IP address. Then, you verify access to public IP addresses of Google APIs and services and other connections to the internet.

VM instances without external IP addresses are isolated from external networks. Using Cloud NAT, these instances can access the internet for updates and patches, and in some cases, for bootstrapping. As a managed service, Cloud NAT provides high availability without user management and intervention.

In this lab, you learn how to perform the following tasks:

  • Configure a VM instance that doesn’t have an external IP address
  • Connect to a VM instance using an Identity-Aware Proxy (IAP) tunnel
  • Enable Private Google Access on a subnet
  • Configure a Cloud NAT gateway
  • Verify access to public IP addresses of Google APIs and services and other connections to the internet

Task 1. Create the VM instance

Create a VPC network with some firewall rules and a VM instance that has no external IP address, and connect to the instance using an IAP tunnel.

Create a VPC network and firewall rules

First, create a VPC network for the VM instance and a firewall rule to allow SSH access.

  1. In the Cloud Console, on the Navigation menu > VPC network > VPC networks.
  2. Click Create VPC network.
  3. For Name, type privatenet.
  4. For Subnet creation mode, click Custom.
  5. Specify the following, and leave the remaining settings as their defaults:

Don’t enable Private Google access yet!

6. Click Done.

7. Click Create and wait for the network to be created.

8. In the left pane, click Firewall.

9. Click Create firewall rule.

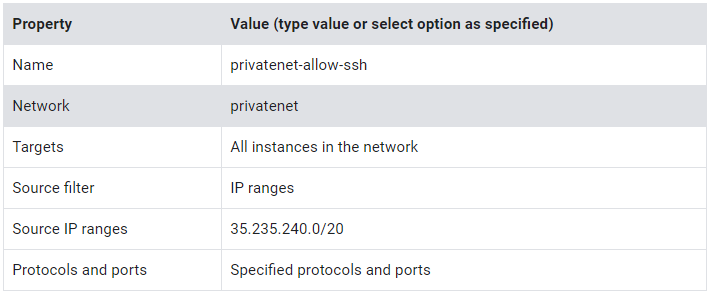

10. Specify the following, and leave the remaining settings as their defaults:

11. For tcp, click the checkbox and specify port 22.

12. Click Create.

In order to connect to your private instance using SSH, you need to open an appropriate port on the firewall. IAP connections come from a specific set of IP addresses (35.235.240.0/20). Therefore, you can limit the rule to this CIDR range.

Create the VM instance with no public IP address

  1. In the Cloud Console, on the Navigation menu > click Compute Engine > VM instances.

2. Click Create.

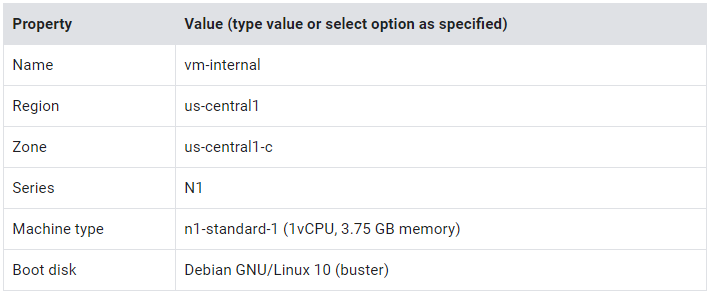

3. Specify the following, and leave the remaining settings as their defaults:

4. Click Management, security, disks, networking, sole tenancy.

5. Click Networking.

6. For Network interfaces, click the pencil icon to edit.

7. Specify the following, and leave the remaining settings as their defaults:

The default setting for a VM instance is to have an ephemeral external IP address. This behavior can be changed with a policy constraint at the organization or project level. To learn more about controlling external IP addresses on VM instances, refer to the external IP address documentation.

8. Click Done.

9. Click Create, and wait for the VM instance to be created.

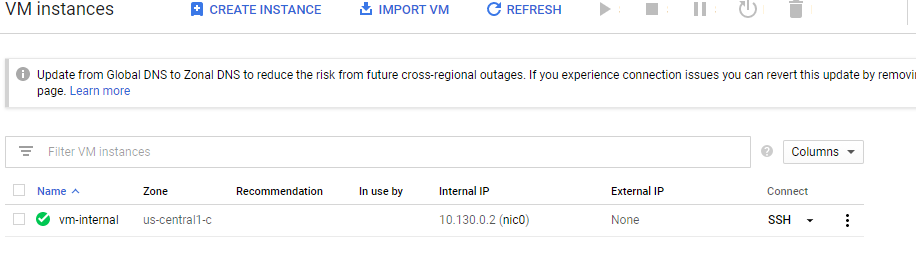

10. On the VM instances page, verify that the External IP of vm-internal is None.

SSH to vm-internal to test the IAP tunnel

  1. In the Cloud Console, click Activate Cloud Shell .
  2. If prompted, click Continue.

3. To connect to vm-internal, run the following command:

4. If prompted about continuing, type Y.

5. When prompted for a passphrase, press ENTER.

6. When prompted for the same passphrase, press ENTER.

7. To test the external connectivity of vm-internal, run the following command:

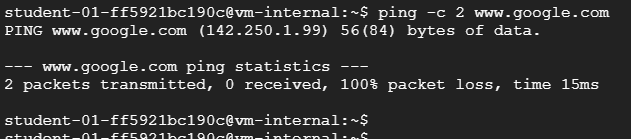

ping -c 2 www.google.com

8. This should not work because vm-internal has no external IP address!

9. To return to your Cloud Shell instance, run the following command:

exit

When instances do not have external IP addresses, they can only be reached by other instances on the network via a managed VPN gateway or via a Cloud IAP tunnel. Cloud IAP enables context-aware access to VMs via SSH and RDP without bastion hosts. For more information about this, see this blog post.

Task 2. Enable Private Google Access

VM instances that have no external IP addresses can use Private Google Access to reach external IP addresses of Google APIs and services. By default, Private Google Access is disabled on a VPC network.

Create a Cloud Storage bucket

Create a Cloud Storage bucket to test access to Google APIs and services.

  1. In the Cloud Console, on the Navigation menu > Storage > Browser.
  2. Click Create bucket.

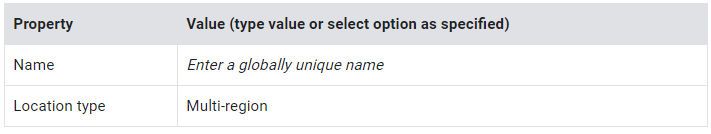

  3. Specify the following, and leave the remaining settings as their defaults:

4. Click Create.

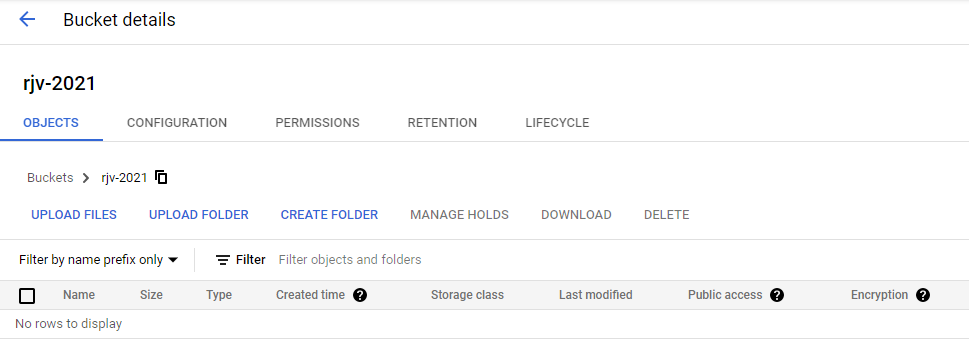

5. Note the name of your storage bucket for the next subtask. It will be referred to as [my_bucket].

Copy an image file into your bucket

Copy an image from a public Cloud Storage bucket to your own bucket.

  1. In Cloud Shell, run the following command, replacing [my_bucket] with your bucket’s name:

gsutil cp gs://cloud-training/gcpnet/private/access.svg gs://[my_bucket]

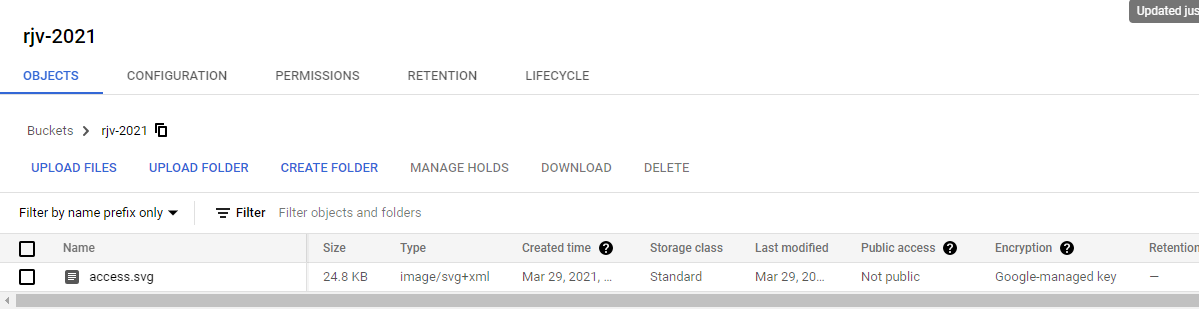

2. In the Cloud Console, click Refresh Bucket to verify that the image was copied.

You can click on the name of the image in the Cloud Console to view an example of how Private Google Access is implemented.

Access the image from your VM instance

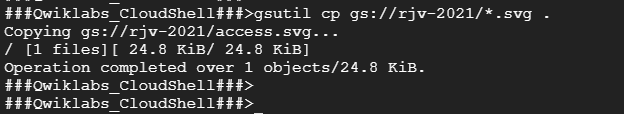

  1. In Cloud Shell, to try to copy the image from your bucket, run the following command, replacing [my_bucket] with your bucket’s name:

gsutil cp gs://[my_bucket]/*.svg .

This should work because Cloud Shell has an external IP address!

2. To connect to vm-internal, run the following command:

gcloud compute ssh vm-internal — zone us-central1-c — tunnel-through-iap

3. If prompted, type Y to continue.

4. To try to copy the image to vm-internal, run the following command, replacing [my_bucket] with your bucket’s name:

gsutil cp gs://[my_bucket]/*.svg .

This should not work: vm-internal can only send traffic within the VPC network because Private Google Access is disabled (by default).

5. Press Ctrl+C to stop the request.

Enable Private Google Access

Private Google Access is enabled at the subnet level. When it is enabled, instances in the subnet that only have private IP addresses can send traffic to Google APIs and services through the default route (0.0.0.0/0) with a next hop to the default internet gateway.

  1. In the Cloud Console, on the Navigation menu > click VPC network > VPC networks.

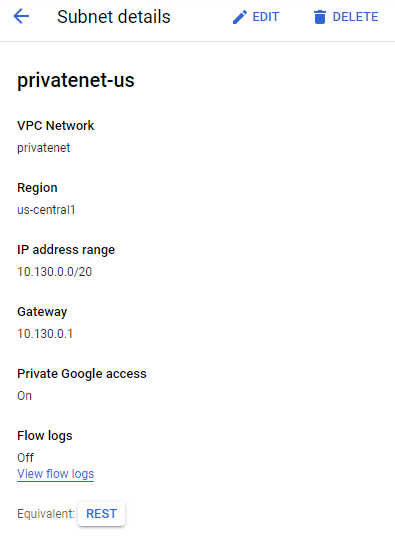

  2. Click privatenet-us to open the subnet.
  3. Click Edit.
  4. For Private Google access, select On.
  5. Click Save.

Yes, enabling Private Google Access is as simple as selecting On within the subnet!

6. In Cloud Shell for vm-internal, to try to copy the image to vm-internal, run the following command, replacing [my_bucket] with your bucket’s name:

gsutil cp gs://[my_bucket]/*.svg .

This should work because vm-internal’s subnet has Private Google Access enabled!

7. To return to your Cloud Shell instance, run the following command:

exit

To view the eligible APIs and services that you can use with Private Google Access, see supported services in the Private Google Access overview.

Task 3. Configure a Cloud NAT gateway

Although vm-internal can now access certain Google APIs and services without an external IP address, the instance cannot access the internet for updates and patches. Configure a Cloud NAT gateway, which allows vm-internal to reach the internet.

Try to update the VM instances

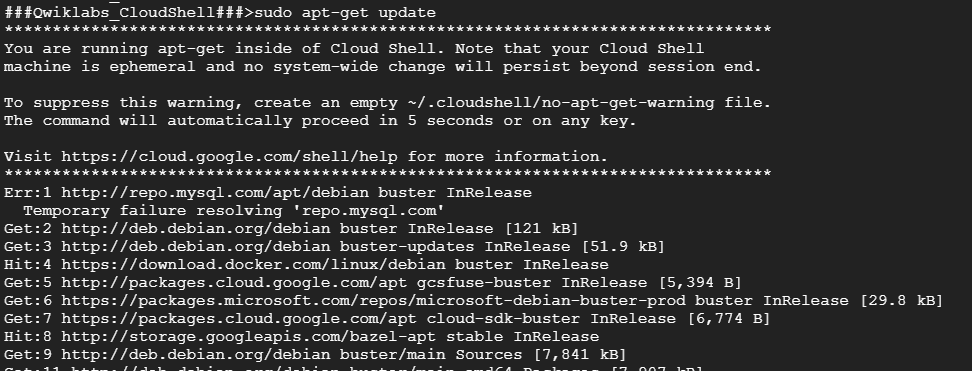

  1. In Cloud Shell, to try to re-synchronize the package index, run the following:

sudo apt-get update

The output should finish like this:

This should work because Cloud Shell has an external IP address!

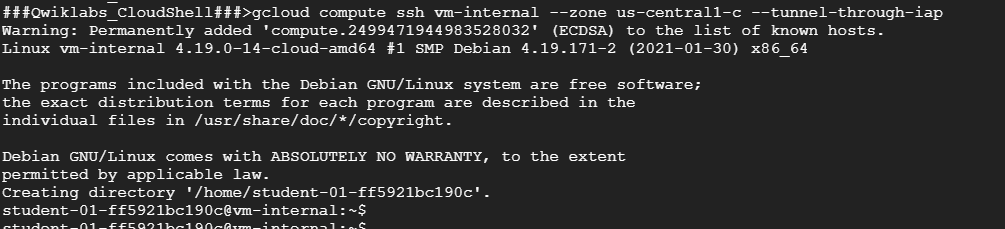

2. To connect to vm-internal, run the following command:

gcloud compute ssh vm-internal — zone us-central1-c — tunnel-through-iap

3. If prompted, type Y to continue.

4. To try to re-synchronize the package index of vm-internal, run the following command:

sudo apt-get update

This should only work for Google Cloud packages because vm-internal only has access to Google APIs and services!

5. Press Ctrl+C to stop the request.

Configure a Cloud NAT gateway

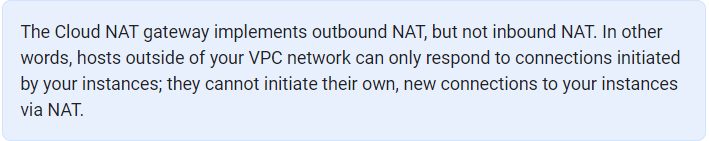

Cloud NAT is a regional resource. You can configure it to allow traffic from all ranges of all subnets in a region, from specific subnets in the region only, or from specific primary and secondary CIDR ranges only.

  1. In the Cloud Console, on the Navigation menu > Network services > Cloud NAT.
  2. Click Get started to configure a NAT gateway.

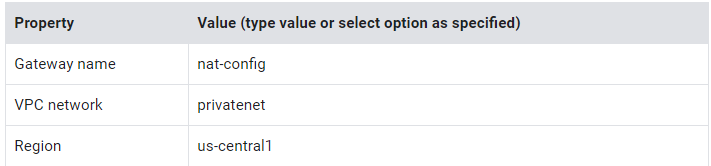

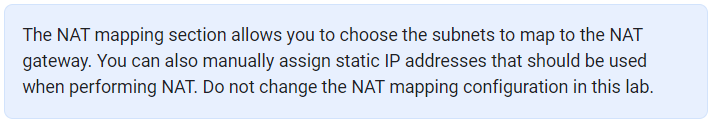

  3. Specify the following:

4. For Cloud Router, select Create new router.

5. For Name, type nat-router

6. Click Create.

7. Click Create.

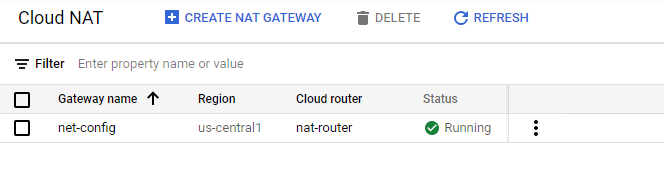

8. Wait for the gateway’s status to change to Running.

Verify the Cloud NAT gateway

It may take up to 3 minutes for the NAT configuration to propagate to the VM, so wait at least a minute before trying to access the internet again.

  1. In Cloud Shell for vm-internal, to try to re-synchronize the package index of vm-internal, run the following command:

sudo apt-get update

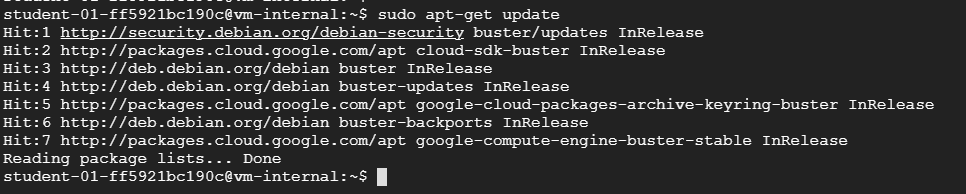

The output should finish like this:

This should work because vm-internal is using the NAT gateway!

2. To return to your Cloud Shell instance, run the following command:

exit

Task 4. Configure and view logs with Cloud NAT Logging

Cloud NAT logging allows you to log NAT connections and errors. When Cloud NAT logging is enabled, one log entry can be generated for each of the following scenarios:

  • When a network connection using NAT is created.
  • When a packet is dropped because no port was available for NAT.

You can opt to log both kinds of events, or just one or the other. Created logs are sent to Cloud Logging.

Enabling logging

If logging is enabled, all collected logs are sent to Cloud Logging by default. You can filter these so that only certain logs are sent.

You can also specify these values when you create a NAT gateway or by editing one after it has been created. The following directions show how to enable logging for an existing NAT gateway.

  1. In the GCP Console, on the Navigation menu > click Network services > Cloud NAT.
  2. Click on the nat-config gateway and then click Edit.
  3. Click the Advanced configurations dropdown to open that section.

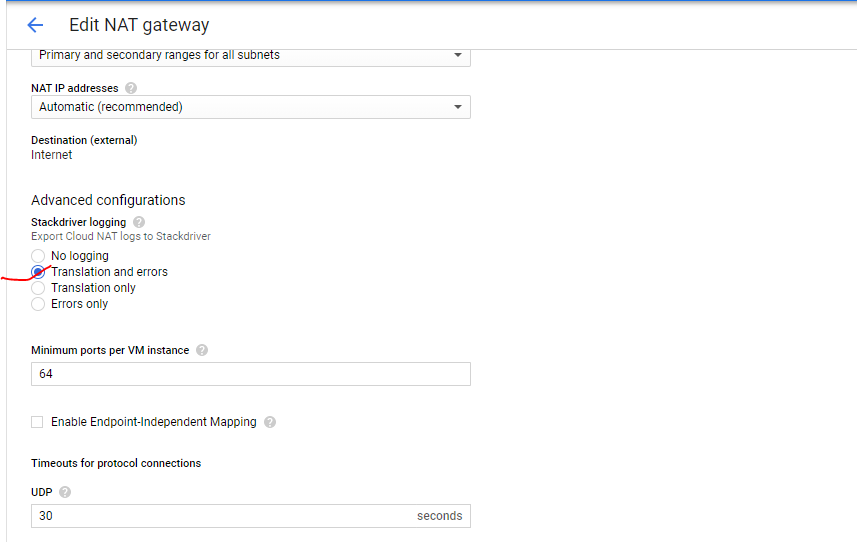

  4. Under Stackdriver logging, select Translation and errors and then click Save.

NAT logging in Cloud Operations

Now that you have set up Cloud NAT logging for the nat-config gateway, let’s find out where we can view our logs.

  1. Click on nat-config to expose its details. Then click on the Logs tab. Then click the link to Stackdriver Logging.
  2. This will open a new tab with Operations logging.

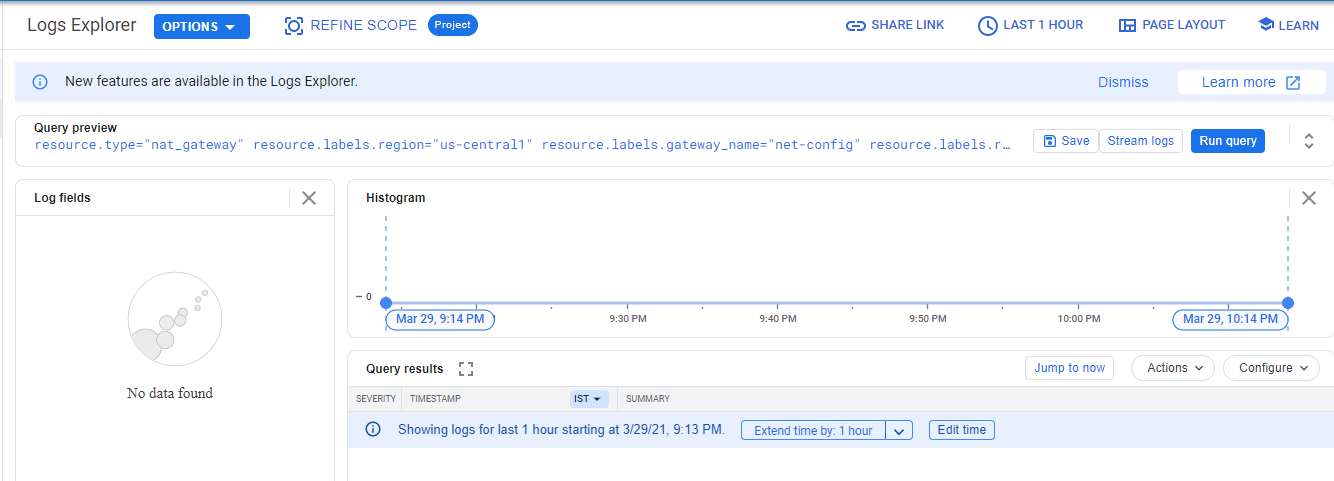

You will see that there aren’t any logs yet — that’s because we just enabled this feature for the gateway. Keep this tab open and return to your other GCP Console tab.

Generating logs

As a reminder, Cloud NAT logs are generated for the following sequences:

  • When a network connection using NAT is created.
  • When a packet is dropped because no port was available for NAT.

Let’s connect the host to the internal VM again to see if any logs are generated.

  1. In Cloud Shell for vm-internal, to try to re-synchronize the package index of vm-internal, run the following command:

gcloud compute ssh vm-internal — zone us-central1-c — tunnel-through-iap

2. If prompted, type Y to continue.

3. Try to re-synchronize the package index of vm-internal by running the following:

sudo apt-get update

The output should look like this:

To return to your Cloud Shell instance, run the following command:

exit

Let’s see if opening up this connection revealed anything new in our logs.

Viewing Logs

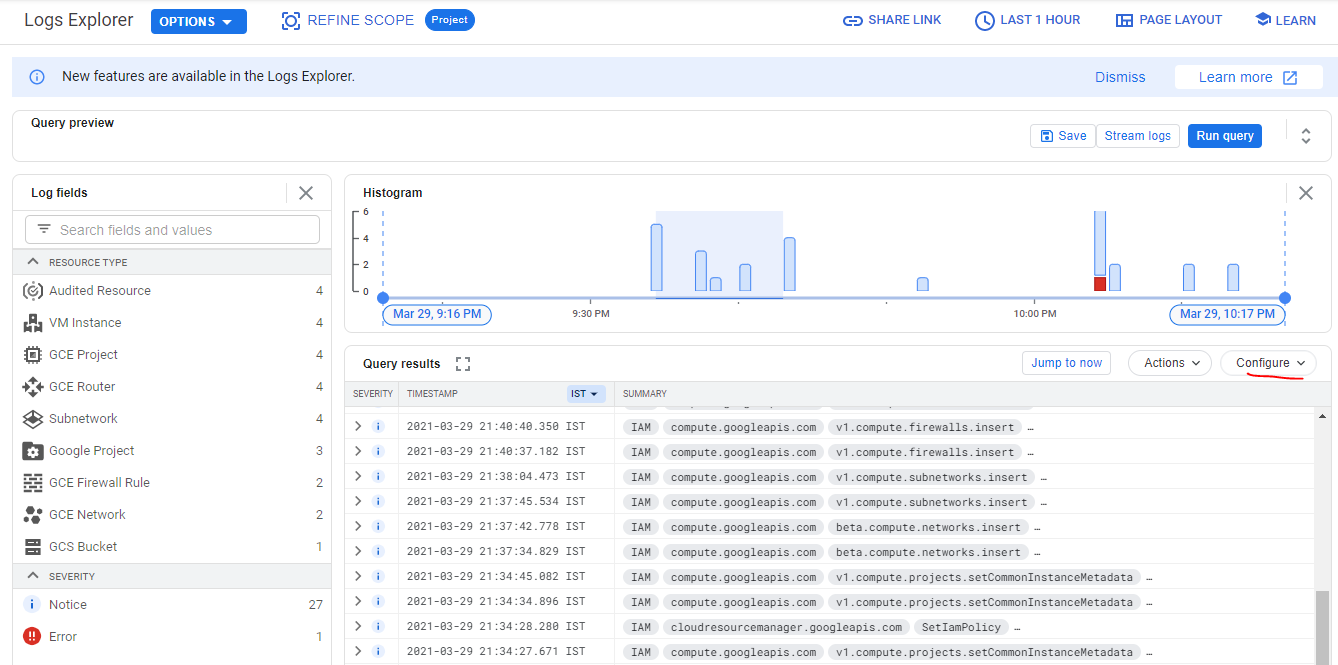

  1. Return to your NAT Logging tab and under Configure dropdown, select Show newest logs first.

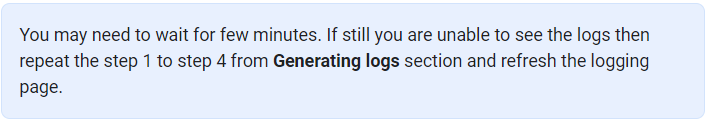

  2. You should see two new logs that were generated after connecting to the internal VM.

As we see, the logs give us details on the VPC network we connected to and the connection method we used. Feel free to expand different labels and details.

You created vm-internal, an instance with no external IP address, and connected to it securely using an IAP tunnel. Then you enabled Private Google Access, configured a NAT gateway, and verified that vm-internal can access Google APIs and services and other public IP addresses.

VM instances without external IP addresses are isolated from external networks. Using Cloud NAT, these instances can access the internet for updates and patches, and in some cases, for bootstrapping. As a managed service, Cloud NAT provides high availability without user management and intervention.

IAP uses your existing project roles and permissions when you connect to VM instances. By default, instance owners are the only users that have the IAP Secured Tunnel User role. If you want to allow other users to access your VMs using IAP tunneling, you need to grant this role to those users.

Happy Learning !!!
