Google Cloud: Establishing VPN Tunnels between Two Networks

Share At:

Google Compute Engine Virtual Private Network (VPN) lets you connect your existing network to your Compute Engine network via an IPsec connection. Alternatively, you can use it to connect two different Google Compute Engine instances running on 2 separate VPC networks.

In this lab, we will establish VPN tunnels between two networks in separate regions such that a VM in one network can ping a VM in the other network over its internal IP address.

Task 1: Explore the networks and instances

In this Demonstration, Two custom networks with VM instances have been pre — configured . For the purposes of the lab, both networks are VPC networks within a Google Cloud project. However, in a real-world application, one of these networks might be in a different Google Cloud project, on-premises, or in a different cloud.

– Explore the networks

Verify that vpn-network-1 and vpn-network-2 have been created with subnets in separate regions.

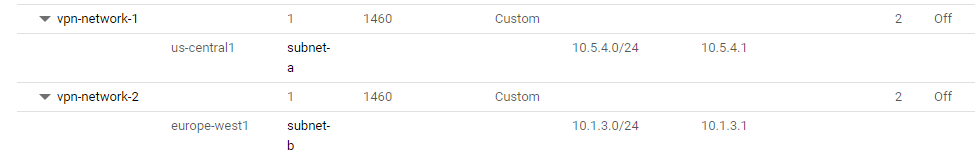

1. In the Cloud Console, on the Navigation menu , click VPC network > VPC networks.

  • Note the vpn-network-1 network and its subnet-a in us-central1.
  • Note the vpn-network-2 network and its subnet-b in europe-west1.

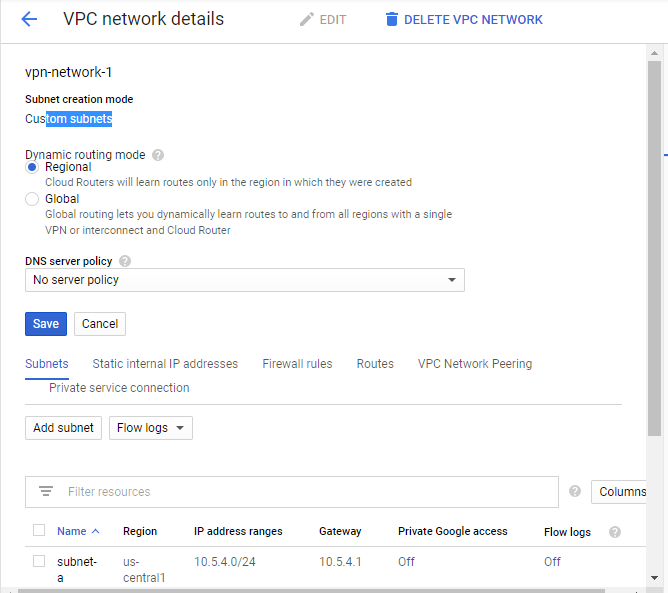

  • Now explore how our VPC network looks like:

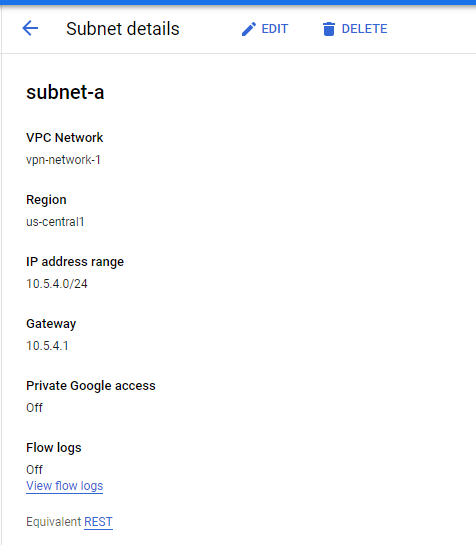

  • Now click on the subnet-a. It should look as below:

– Explore the firewall rules

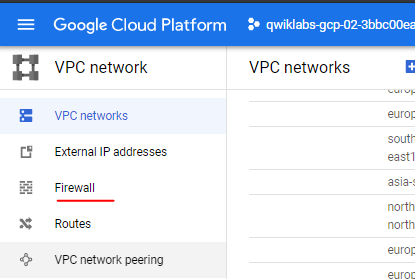

1. In the navigation pane, click Firewall.

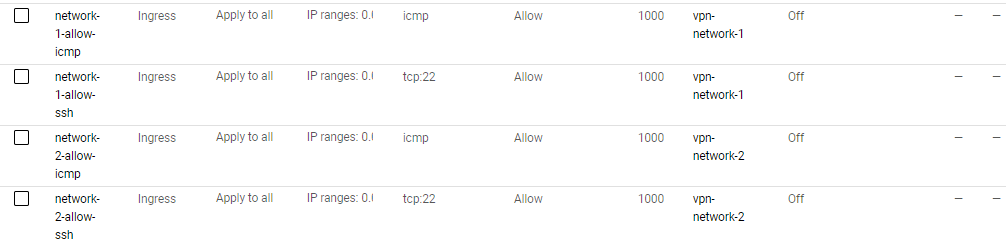

  • Note the network-1-allow-ssh and network-1-allow-icmp rules for vpn-network-1.
  • Note the network-2-allow-ssh and network-2-allow-icmp rules for vpn-network-2.

These firewall rules allow SSH and ICMP traffic from anywhere.

– Explore the instances and their connectivity

Currently, the VPN connection between the two networks is not established. Explore the connectivity options between the instances in the networks.

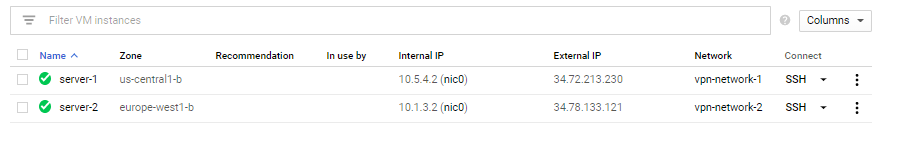

1. In the Cloud Console, on the Navigation menu , click Compute Engine > VM instances.

2. Click Columns, and select Network.

3. Note the external and internal IP addresses for server-2.

4. For server-1, click SSH to launch a terminal and connect.

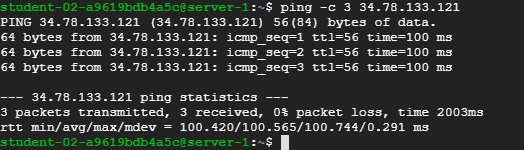

5. To test connectivity to server-2’s external IP address, run the following command, replacing server-2’s external IP address with the value noted earlier:

This works because the VM instances can communicate over the internet.

6. To test connectivity to server-2’s internal IP address, run the following command, replacing server-2’s internal IP address with the value noted earlier:

You should see 100% packet loss when pinging the internal IP address because you don’t have VPN connectivity yet.

7. Exit the SSH terminal.

Let’s try the same from server-2.

8. Note the external and internal IP addresses for server-1.

9. For server-2, click SSH to launch a terminal and connect.

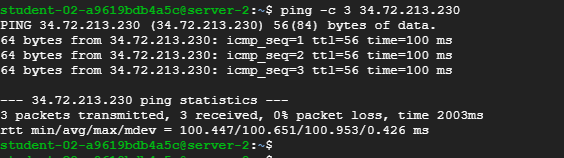

10. To test connectivity to server-1’s external IP address, run the following command, replacing server-1’s external IP address with the value noted earlier:

11. To test connectivity to server-1’s internal IP address, run the following command, replacing server-1’s internal IP address with the value noted earlier:

You should see similar results.

12. Exit the SSH terminal.

Why are we testing both server-1 to server-2 and server-2 to server-1?

For the purposes of this lab, the path from subnet-a to subnet-b is not the same as the path from subnet-b to subnet-a. You are using one tunnel to pass traffic in each direction. And if both tunnels are not established, you won’t be able to ping the remote server on its internal IP address. The ping might reach the remote server, but the response can’t be returned.

This makes it much easier to debug the lab during class. In practice, a single tunnel could be used with symmetric configuration. However, it is more common to have multiple tunnels or multiple gateways and VPNs for production work, because a single tunnel could be a single point of failure.

Task 2: Create the VPN gateways and tunnels

Establish private communication between the two VM instances by creating VPN gateways and tunnels between the two networks.

Reserve two static IP addresses

Reserve one static IP address for each VPN gateway.

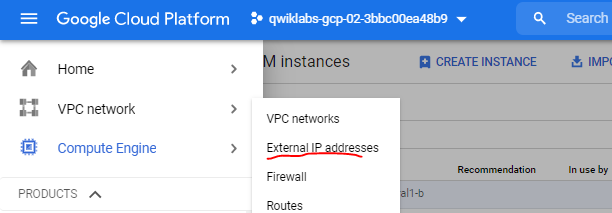

  1. In the Cloud Console, on the Navigation menu , click VPC network > External IP addresses.

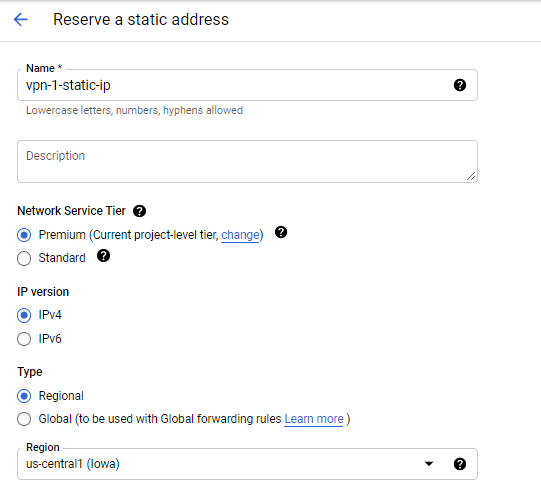

2. Click Reserve static address.

3. Specify the following, and leave the remaining settings as their defaults:

4. Click Reserve.

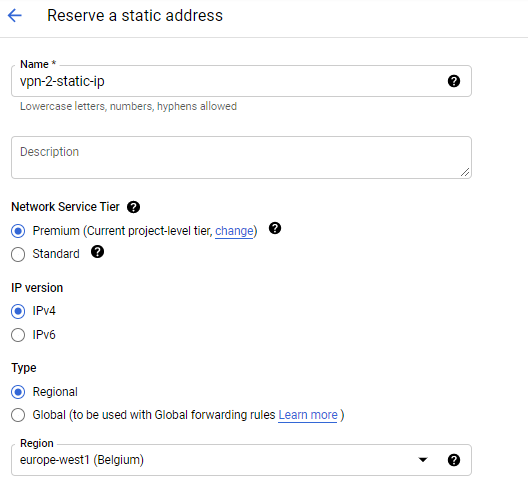

Repeat the same for vpn-2-static-ip

5. Click Reserve static address.

6. Specify the following, and leave the remaining settings as their defaults:

  • Note both IP addresses for the next step. They will be referred to us [VPN-1-STATIC-IP] and [VPN-2-STATIC-IP].

– Create the vpn-1 gateway and tunnel1 to 2

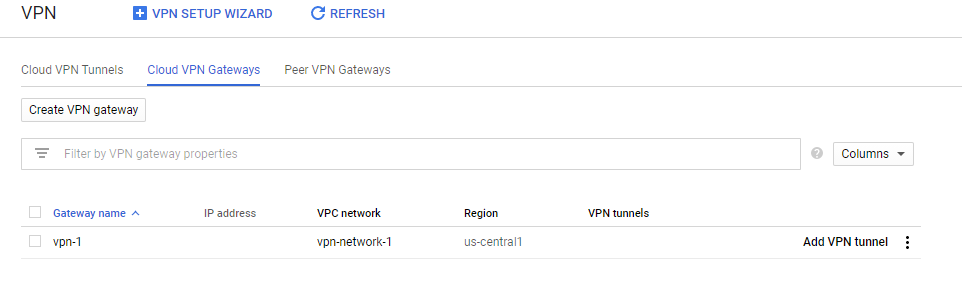

  1. In the Cloud Console, on the Navigation menu > click Hybrid Connectivity > VPN.

2. Click Create VPN Connection.

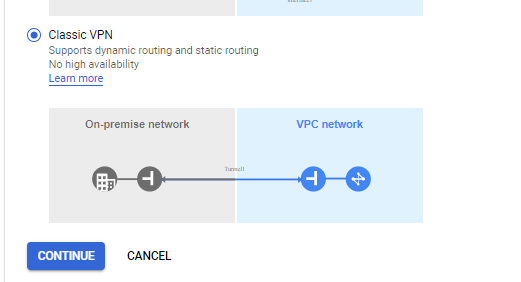

3. If asked, select Classic VPN, and then click Continue.

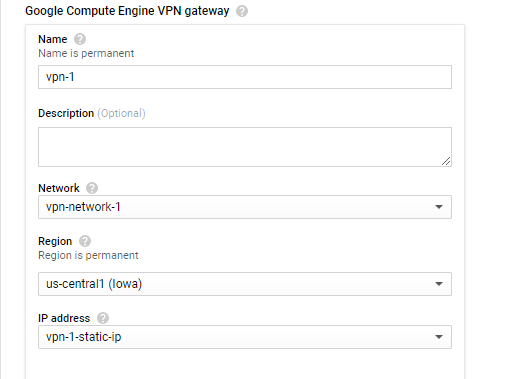

4. Specify the following in the VPN gateway section, and leave the remaining settings as their defaults:

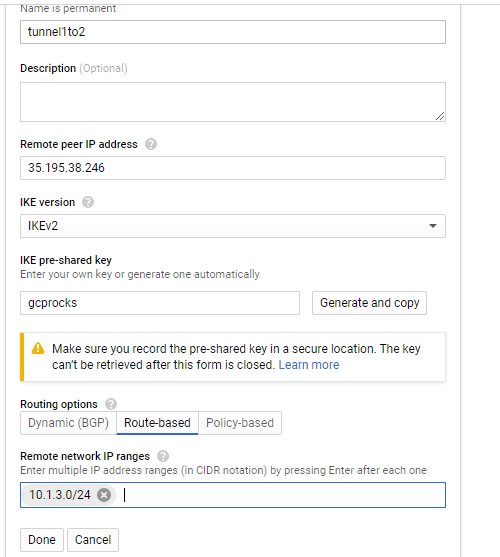

5. Specify the following in the Tunnels section, and leave the remaining settings as their defaults:

Make sure to replace [VPN-2-STATIC-IP] with your reserved IP address for europe-west1

6. Click Done and Click Create.

– Create the vpn-2 gateway and tunnel2 to 1

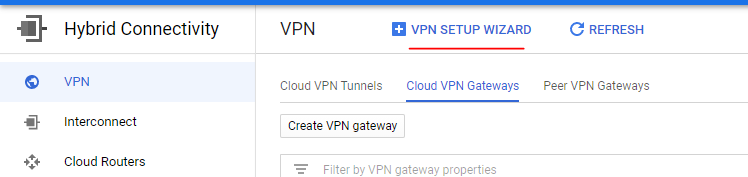

  1. Click VPN setup wizard.

2. If asked, select Classic VPN, and then click Continue.

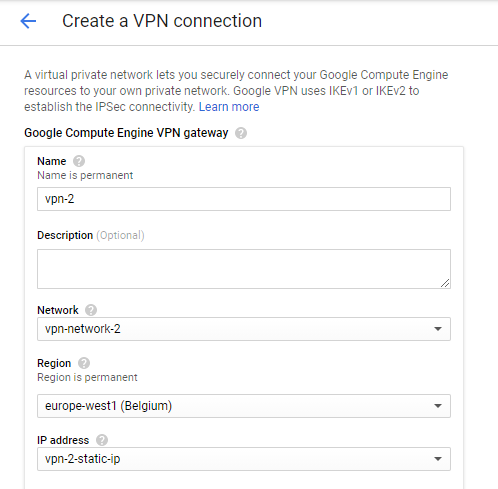

3. Specify the following in the VPN gateway section, and leave the remaining settings as their defaults:

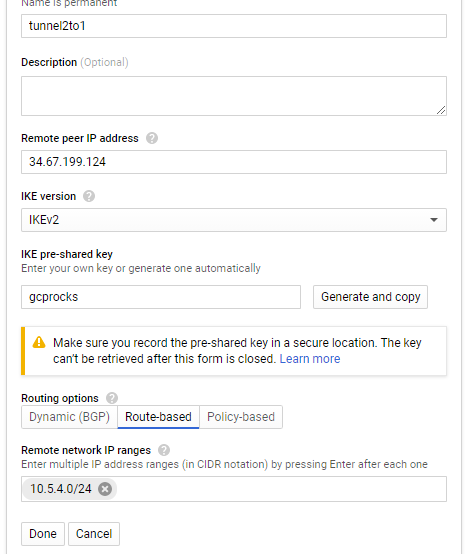

4. Specify the following in the Tunnels section, and leave the remaining settings as their defaults:

Make sure to replace [VPN-1-STATIC-IP] with your reserved IP address for us-central1

5. Click Done and Click Create.

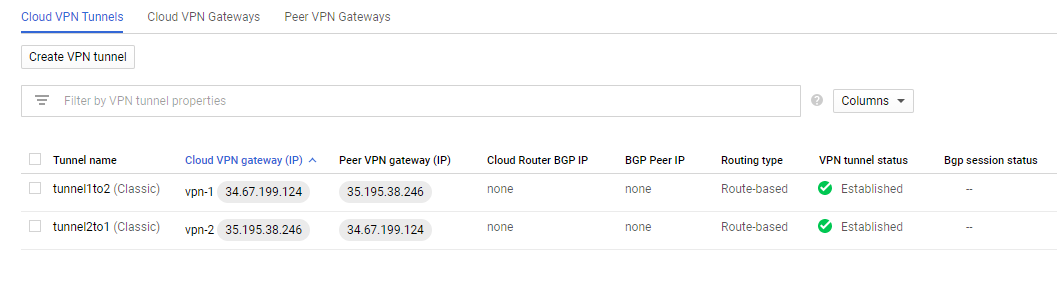

6. Click Cloud VPN Tunnels. Wait for the VPN tunnels status to change to Established for both tunnels before continuing.

Task 3: Verify VPN connectivity

– Verify server-1 to server-2 connectivity

1. In the Cloud Console, on the Navigation menu, click Compute Engine > VM instances.

2. For server-1, click SSH to launch a terminal and connect.

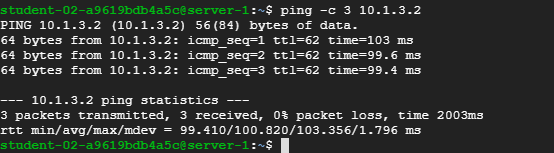

3. To test connectivity to server-2’s internal IP address, run the following command:

4. Exit the server-1 SSH terminal.

– Verify server-2 to server-1 connectivity

5. For server-2, click SSH to launch a terminal and connect.

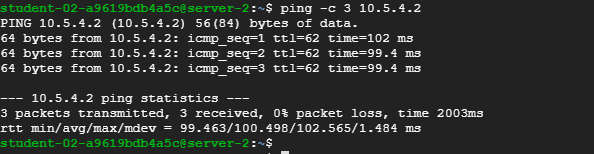

6. To test connectivity to server-1’s internal IP address, run the following command:

We can now see that the connectivity between server-1 to server-2 and server-2 to server-1 is fine now using VPN.

That concludes our tutorial for Establishing VPN tunnels between two Networks.

Happy Learning !!!
